CD 233.2
Hemingray - 511
Insulator Facts

Dimensions:3" H × 3 3⁄4" W
Primary Embossing:The Primary Embossing is typically found on the front of the insulator and usually identifies either the manufacturer (such as "Hemingray") or the company that the insulator was made for (such as "AM.TEL.&TEL.CO.")

Insulators with No Name or No Embossing are denoted as such.
 HEMINGRAY
Years Produced: 1939-1940s
Style Identifier:Hemingray often used style numbers, letters, words, or a combination to differentiate their insulator styles (such as: T.S., E2, № 1 Provo Type, Muncie Type, etc.) These are often, but not always, embossed on the insulator.
511
Rarity Scale 0. No specimens known
1. Extremely Common (millions known)
2. Very Common
3. Common
4. Fairly Common
5. Uncommon
6. Very Uncommon
7. Rare (dozens known)
8. Very Rare (less than a dozen known)
9. Extremely Rare (2 or 3 known)
10. Unique (only one known)
 Very Uncommon (6/10)
Usage: Power (Primary Distribution)
Series:510
Voltage Rating: 7,500 Volts
Weight:Weight is an average only (or as specified in original catalogs.) Weight may vary substantially depending on many factors, including amount of glass poured, depth of the threads, mold variations, added hardware such as brass or lead bushings, etc.
 17.5 oz.
Value Range:
Not Available This style is rare or unique enough that a current insulator price guide should be consulted.
Insulator Overview

This is an uncommon piece in the "-51X" series of Hemingray power insulators. Based on the similar design, this may have possibly been the final version of the earlier experimental CD 233 E3.

Related Links:
Known Embossings (2)
Primary EmbossingThe Primary Embossing is typically found on the front of the insulator and usually identifies either the manufacturer (such as "Hemingray") or the company that the insulator was made for (such as "AM.TEL.&TEL.CO.")

Insulators with No Name or No Embossing are denoted as such.
EINThe Embossing Index Number (EIN) is a unique number assigned by the collecting hobby to each distinct embossing for an insulator design. It is normally shown in brackets, e.g. [050].
EmbossingMost common terms:
(F-Skirt): Front Skirt
(R-Skirt): Rear Skirt
/: New line of embossing
{}: Special note (not embossed on the insulator)
[#]: Represents a number

Other terms:
{MLOB}: Mold Line Over Base
(F-Crown): Front Crown
(R-Crown): Rear Crown
(F-Umbrella): Front Umbrella
(R-Umbrella): Rear Umbrella
BaseThe base is the bottom of the insulator. Hemingray made 4 different types of bases:

1. SDP: Sharp Drip Points
2. RDP: Round Drip Points
3. CB: Corrugated Base
4. SB: Smooth Base
Year AddedThis is the year that this embossing was officially recognized and added to the McDougald (1991-2008) or Briel (2011-2023) insulator price guides. It is not necessarily the year this embossing was discovered.
Status✓ = In my collection

If the value in this column says WANTED, then that specific insulator is on my wanted list! If you have that insulator and would like to sell it, click on the WANTED link to submit photos and contact me.
HEMINGRAY [010] (F-Skirt) HEMINGRAY - 511 (R-Skirt) [# and dots]/MADE IN U.S.A. SB - No Photo✓

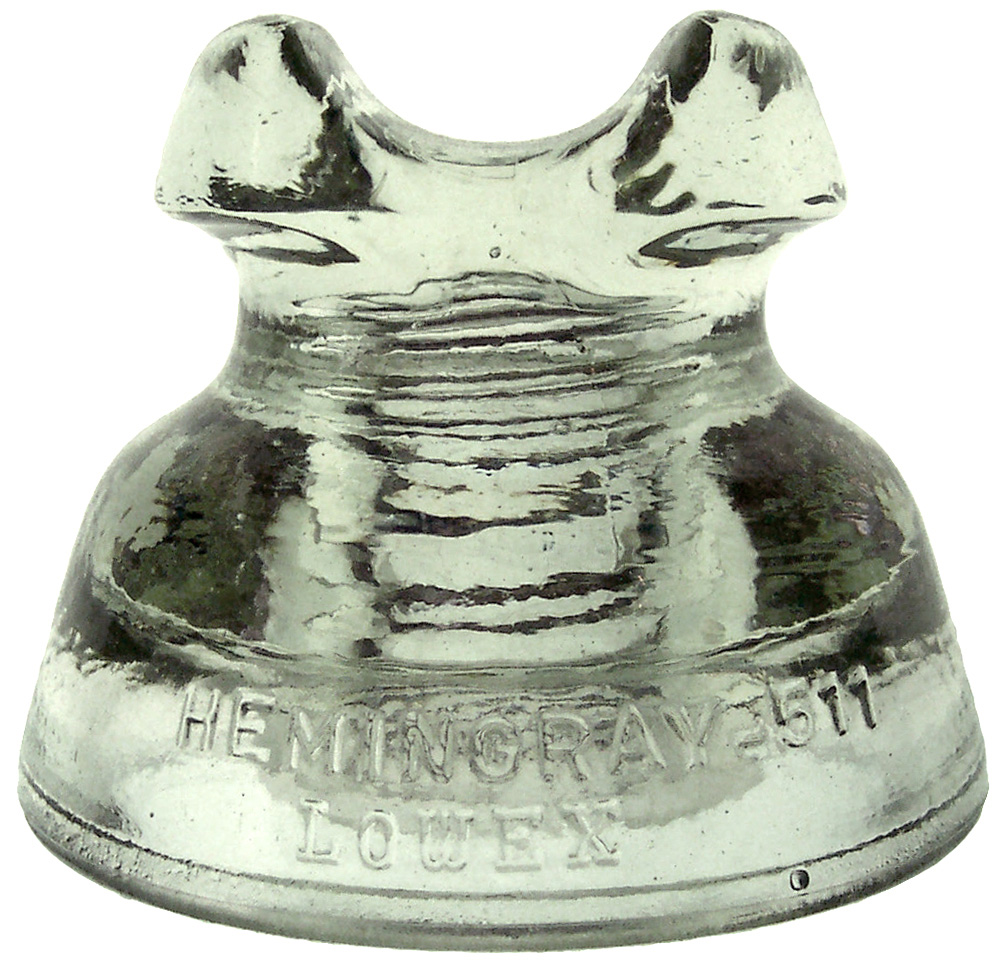

HEMINGRAY [020] (F-Skirt) HEMINGRAY - 511/LOWEX (R-Skirt) [# and dots]/MADE IN U.S.A. SB - Photo✓
Removed Embossing

The following embossing(s) were removed from the price guide because they could not be verified to exist, were consolidated with other embossings, or were otherwise ambiguous/inaccurate. They are preserved here for historical purposes.


Notice: Trying to access array offset on value of type null in /hermes/bosnacweb04/bosnacweb04bc/b2315/ipw.songofth/public_html/personal/public/hemingray/database/detail.php on line 816

Notice: Trying to access array offset on value of type null in /hermes/bosnacweb04/bosnacweb04bc/b2315/ipw.songofth/public_html/personal/public/hemingray/database/detail.php on line 817

Notice: Trying to access array offset on value of type null in /hermes/bosnacweb04/bosnacweb04bc/b2315/ipw.songofth/public_html/personal/public/hemingray/database/detail.php on line 818

Notice: Trying to access array offset on value of type null in /hermes/bosnacweb04/bosnacweb04bc/b2315/ipw.songofth/public_html/personal/public/hemingray/database/detail.php on line 819

Notice: Trying to access array offset on value of type null in /hermes/bosnacweb04/bosnacweb04bc/b2315/ipw.songofth/public_html/personal/public/hemingray/database/detail.php on line 820

Notice: Trying to access array offset on value of type null in /hermes/bosnacweb04/bosnacweb04bc/b2315/ipw.songofth/public_html/personal/public/hemingray/database/detail.php on line 821

Notice: Trying to access array offset on value of type null in /hermes/bosnacweb04/bosnacweb04bc/b2315/ipw.songofth/public_html/personal/public/hemingray/database/detail.php on line 822

Notice: Trying to access array offset on value of type null in /hermes/bosnacweb04/bosnacweb04bc/b2315/ipw.songofth/public_html/personal/public/hemingray/database/detail.php on line 823

Notice: Trying to access array offset on value of type null in /hermes/bosnacweb04/bosnacweb04bc/b2315/ipw.songofth/public_html/personal/public/hemingray/database/detail.php on line 824

Notice: Trying to access array offset on value of type null in /hermes/bosnacweb04/bosnacweb04bc/b2315/ipw.songofth/public_html/personal/public/hemingray/database/detail.php on line 825

Notice: Trying to access array offset on value of type null in /hermes/bosnacweb04/bosnacweb04bc/b2315/ipw.songofth/public_html/personal/public/hemingray/database/detail.php on line 826
Primary EmbossingThe Primary Embossing is typically found on the front of the insulator and usually identifies either the manufacturer (such as "Hemingray") or the company that the insulator was made for (such as "AM.TEL.&TEL.CO.")

Insulators with No Name or No Embossing are denoted as such.
EINThe Embossing Index Number (EIN) is a unique number assigned by the collecting hobby to each distinct embossing for an insulator design. It is normally shown in brackets, e.g. [050].
EmbossingMost common terms:
(F-Skirt): Front Skirt
(R-Skirt): Rear Skirt
/: New line of embossing
{}: Special note (not embossed on the insulator)
[#]: Represents a number

Other terms:
{MLOB}: Mold Line Over Base
(F-Crown): Front Crown
(R-Crown): Rear Crown
(F-Umbrella): Front Umbrella
(R-Umbrella): Rear Umbrella
BaseThe base is the bottom of the insulator. Hemingray made 4 different types of bases:

1. SDP: Sharp Drip Points
2. RDP: Round Drip Points
3. CB: Corrugated Base
4. SB: Smooth Base
 Year Removed
n/a
Known Colors (2)
ColorThe color of the insulator.
Clear
Green Tint
