Hemingray Insulator Profile: CD 128
This style is a carrier circuit insulator used for long distance telephone lines and was used in conjunction with a special steel pin with a lead lining (hence the "C" for Carrier Circuit and "S" for Steel pin; the meaning of "A", "O", and second "C" are unknown.) This style was also assigned the No.22CSC style number in 1942-1944, but no specimens exist with this style number.

Dimensions: 4" H x 2 5/8" W
Years Produced:
Style Numbers:CS, CSA, CSC, CSO, E1
Rarity Scale (1-10): Extremely Common (1)
Usage: Telephone Long Distance
Mold Variations Collapse
Hemingray E1 Style
This is the earlier Hemingray E.1. style. Note the flared skirt, lip on the lower wire ridge and the extra threading inside of the skirt. This style is found in the [020] and [030] embossings.

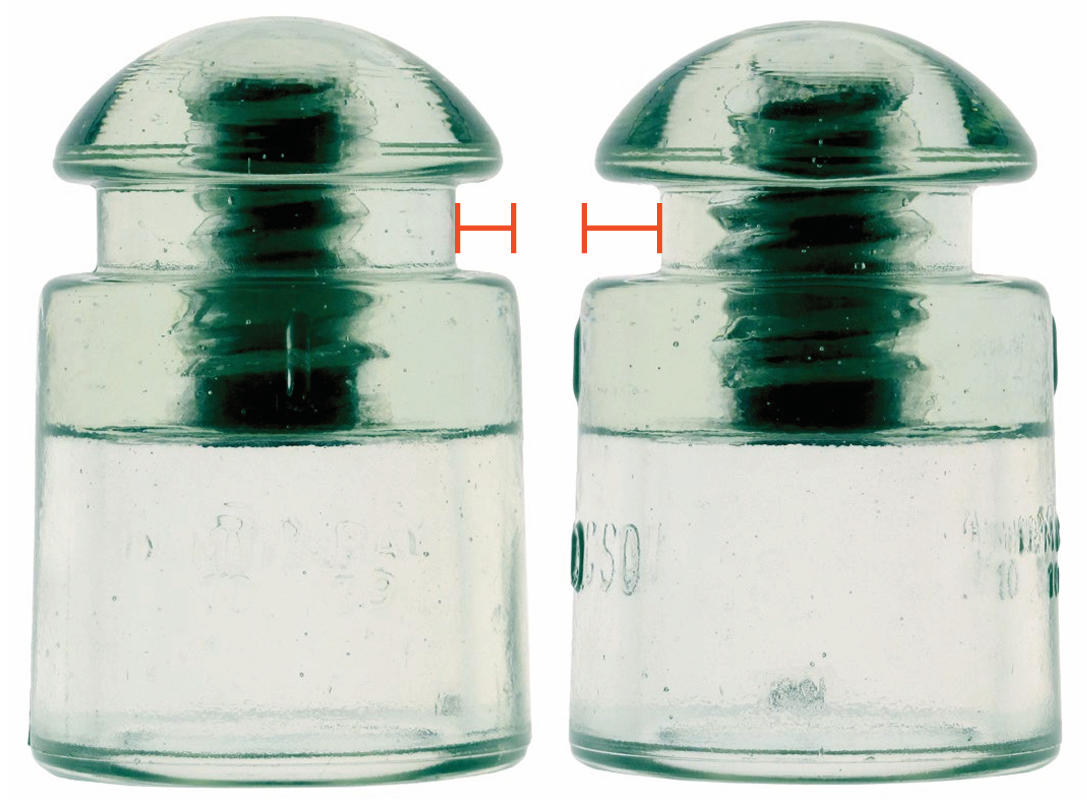

Hemingray CS Style
The Hemingray CS styles are always embossed with the Owens Illinois logo: . This style has almost identical mold features to the E.1., but has no threading inside the skirt.
[045] Experimental Style
This particular variation has four hemispherical indentations in the base of the insulator (basically the appearance of four inverted round drip points). This is listed as [045]. It is considered an experimental piece.
Known Embossings (14) Collapse
HEMINGRAY [003] (F-Skirt) HEMIGRAY / [Numbers and dots] {Note spelling} (R-Skirt) C.S.C.
Note: Known mold and date code: 41-42
HEMINGRAY [007] (F-Skirt) HEMINGRAY_CS/Owens-Illinois logo (R-Skirt) _14B {Note '14B' style number} SB < WANTED!
HEMINGRAY [010] (F-Skirt) HEMINGRAY_CS/Owens-Illinois logo (R-Skirt) E_14B SB Photo
HEMINGRAY [020] (F-Skirt) HEMINGRAY_CS/Owens-Illinois logo (R-Skirt) E_14B {Inside of skirt is threaded} SB < WANTED!
HEMINGRAY [030] (F-Skirt) HEMINGRAY-E.1. (R-Skirt) MADE IN U.S.A. {Inside of skirt is threaded} SB Photo
HEMINGRAY [035] (F-Skirt) HEMINGRAY/[Numbers and dots] (R-Skirt) C S C {Note no periods} CB
HEMINGRAY [040] (F-Skirt) HEMINGRAY/[Numbers and dots] (R-Skirt) C.S.A. SB Photo
HEMINGRAY [045] (F-Skirt) HEMINGRAY/[Numbers and dots] (R-Skirt) C.S.A. {Base has four indentations; experimental piece} SB Photo
HEMINGRAY [050] (F-Skirt) HEMINGRAY/[Numbers and dots] (R-Skirt) C.S.C. CB Photo
HEMINGRAY [060] (F-Skirt) HEMINGRAY/[Numbers and dots] (R-Skirt) C.S.C. SB Photo
HEMINGRAY [070] (F-Skirt) [Vertical bar]/HEMINGRAY/[Numbers] (R-Skirt) [Vertical bar]/C.S.O. SB Photo
HEMINGRAY [080] (F-Skirt) [Vertical bar]/HEMINGRAY/[Numbers] (R-Skirt) [Vertical bar]/CSO {'O' is engraved over an 'A'} SB Photo
HEMINGRAY [090] (F-Skirt) [Vertical bar]/HEMINGRAY/[Number] (R-Skirt) C.S.C. SB
HEMINGRAY [100] (F-Skirt) [Vertical bar]/HEMINGRAY/[Number] (R-Skirt) C.S.O. SB < WANTED!

The following embossings were removed from the price guide because they could not be verified to exist:

Unverified Embossings
Year Removed
